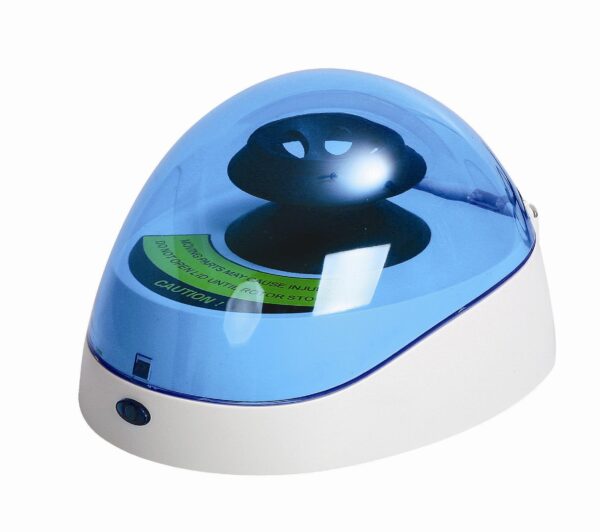

MINI CENTRIFUGE

The mini centrifuge series AI-Mini-10K is perfect designed with novel and unique appearance. It is
pretty and skillful, equipped with 2 types of rotors and several tube carriers for 2.0ml /1.5ml /
0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube rank. It is designed for feeling. Open/close the cover
will automatically start/stop the centrifuge. Built‐in timing function. Humanism is fully displayed in
its transparent roundness cover, several rotors, and tube carriers for choice.

Product Features
1. Large radius rotor with 8 tube holes, centrifugal force is 1.5 times bigger than ordinary 6‐hole
rotor at the same rolling speed.
2. The cover switch is outward designed and superstructure automatically bounces 95 degrees
which is convenient for one‐hand operation.
3. The rotor is clip‐on fixed. It is very convenient for rotors exchanging and pick‐and‐place.
4. LED display the rolling speed and timing.
5. Practice silent and stable. Free‐maintenance motor, long life and safe.
6. Delicate appearance. Multi‐purpose to meet different experiments demands.

Model :AI-MINI-10K+
Speed : 3000rpm – 10000rpm (step 1000rpm)
Centrifugal Force: 1000g – 7500 g
Sample Capacity: 8 x 2.0ml/1.5ml/0.5ml/0.2ml tube (additional 0.5ml and 0.2ml
tube carriers)2 x 8 x 0.2ml PCR tube strip(tube strip only used when
speed≤6000rpm)
Time Range :1s – 999min
Noise: ≤55 dB
Dimension 176x156x121 (mm)
Net Weight :≤1.5kg
Power :220V/
