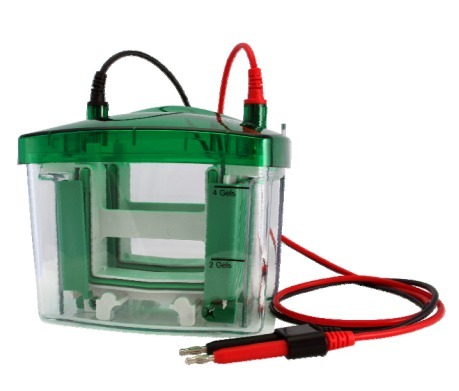

Mini Vertical Electrophoresis System

Product Features

The Mini P-4 Cell has set the new standard for Mini Vertical Electrophoresis

Easier to assemble, leakproof, and with a four-gel
capacity that doubles the output of the traditional
cell, the Mini P-4 cell combines traditional features
with higher throughput and even greater reliability.
Modular Cells for Many Applications
Interchangeable modules easily convert a Mini P-4
cell from one application to another. Each module
fits into the same buffer tank and lid to form a
complete cell.
The modular configurations are:
Mini P-4 electrophoresis cell — for running handcast
or precast PAGE gel and (SDS)-PAGE gels
Mini TBC electrophoretic transfer cell — for western blotting.

The Mini-P-4 cell is ideal for your vertical mini gel electrophoresis needs. Easy to use, easy to assemble, robust, and versatile, the cell accommodates up to four handcast or precast gels. Casting and running gels have never been quicker or easier.

Run up to 4 mini gels in less than an hour

Run four 2-D gels in less than a day

Evaluate sample preparation conditions

Screen new samples and process discovery projects.

Number of gels 1–4
Precast gels precast gels
Handcast gels Cast using
spacer plates
Glass plate size (W x L)
Short plate 10.1 x 7.3 cm
Spacer plate 10.1 x 8.2 cm
Gel size (W x L)
Handcast 8.3 x 7.3 cm
Precast 8.6 x 6.8 cm
Total buffer volume for 2 gels 700 ml
Total buffer volume for 4 gels 1,000 ml
Typical run times for SDS-PAGE 35–45 min (at 200 V constant)
Recommended power supply Power B or
Power BC
Dimensions (W x L x H) 12 x 16 x 18 cm
