Pharma Instruments
Analytical Instruments for Pharmaceutical Labs
Antibiotic zone readers and ampoule breakpoint testers

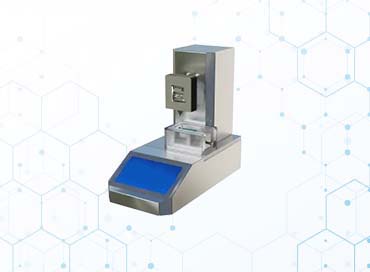

Ampoule Breakpoint Tester RABT-3
The Ampoule Breakpoint Tester RABT-3 is a precision instrument designed to measure the force required to break open pharmaceutical ampoules. It ensures that ampoules are easy to open for medical professionals while maintaining structural integrity during transport and storage.
Key Features:
- Precision force measurement system
- Adjustable support for various ampoule sizes
- Digital peak force display
- Safe breaking mechanism with containment
- Easy to calibrate with standard weights
- Durable stainless steel contact parts
- Compliance with ISO 9187 standards
- Statistical reporting of break force
Technical Specifications:
| Force Range | 0-100 N |
|---|---|
| Force Resolution | 0.1 N |
| Ampoule Sizes | 1 ml to 25 ml |
| Accuracy | ±0.2% Full Scale |
| Display | Backlit Digital LCD |
| Material | SS 304 and 316 |
Lacquer Porosity Tester RLT-5B

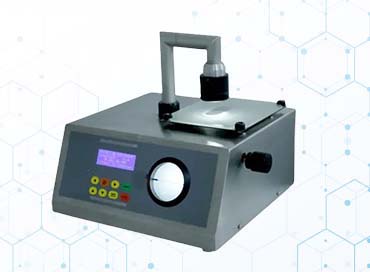

The Antibiotic Zone Reader MZR from Raise Lab Equipment provides accurate and consistent measurement of inhibition zones for antibiotic susceptibility testing.
Key Features:
- Digital zone measurement
- High-resolution optics
- Automatic zone detection
- Data storage and export
- Multiple plate sizes supported
- User-friendly interface
- Calibration tools included
- Compliance with CLSI standards
Technical Specifications:
| Measurement Range | 6-50 mm |
|---|---|
| Resolution | 0.1 mm |
| Accuracy | ±0.2 mm |
| Plate Sizes | 60, 90, 150 mm |
| Data Storage | 5000 readings |
| Power Supply | AC 220V, 50Hz |
