Lacquer Porosity Testers for Aluminium Tubes, Cans & Foils
Specialized equipment for detecting lacquer coating defects and porosity in metal containers

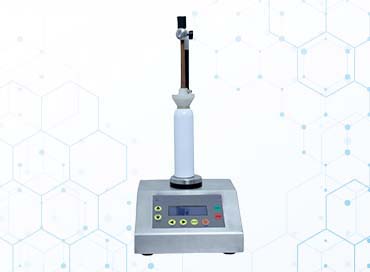

Lacquer Porosity Tester RLT-10B
The Lacquer Porosity Tester RLT-10B from Raise Lab Equipment is designed to detect pinholes and porosity in lacquer coatings on metal containers using electrochemical principles.
Key Features:
- Simple and easy to operate
- User-friendly menu for easy operational procedure
- 4×20 LCD display for better visibility
- Embedded system designed with microcontroller
- In-built thermal printer for instant test reports
- Suitable for lacquer porosity testing in aluminium tubes, cans, bottle caps & foils
- Requires 10 samples per test
- Programmable test duration for each test sample (in seconds)
- Internal timer starts on pressing start key and displays elapsed time
- Test results displayed on LCD and printable via in-built thermal printer
- Can be validated using a certified external ammeter complying with ISI & EU standards
- Password protection for real-time clock
- cGMP model with SS-304 body
Technical Specifications:
| Display | 4×20 LCD Display |
|---|---|
| Method of Operation | 8-key soft-touch membrane keypad |
| Current Flow | Adjustable up to 1 Amp (as per tube diameter) |
| Printer | In-built thermal printer |
| Main Fuse | 500 mA |
| Fuse Rating for Display | 3.0 Amp |
| Power Supply | 230V / 50Hz |

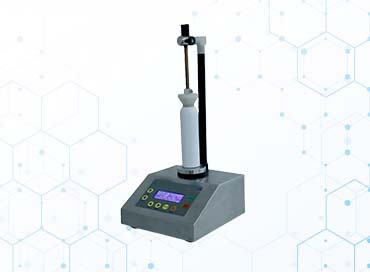

Lacquer Porosity Tester RLT-5B
The Lacquer Porosity Tester RLT-5B is a specialized instrument designed for quick and efficient testing of lacquer integrity on pharmaceutical and food containers.
Key Features:
- Simple and easy to operate
- User-friendly menu for easy operational procedure
- 4×20 LCD display for better visibility
- Embedded system designed with a microcontroller
- Ideal testing equipment for lacquer porosity testing in aluminium tubes, cans, bottle caps & foils
- Requires 10 samples per test
- Programmable test duration for each test sample (in seconds)
- One-touch start key initiates internal timer with elapsed time display
- Test results viewable on 20×4 LCD display
- Equipment validation possible using a certified external ammeter complying with ISI & EU standards
- Password protection for real-time clock
Technical Specifications:
| Display | 4×20 LCD Display |
|---|---|
| Method of Operation | 8-key soft-touch membrane keypad |
| Printer | In-built thermal printer |
| Main Fuse | 500 mA |
| Power Supply | 230V / 50Hz / 110V / 50Hz |
