Powder Testing Instruments — Tapped Density, Flow Tester, Sieve Shaker
Comprehensive tools for powder characterization including sieve shakers and flow testers

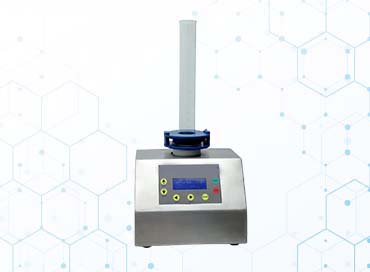

Tapped Density Apparatus TD-2
The Tapped Density Apparatus TD-2 from Raise Lab Equipment is designed for accurate measurement of powder tapped density. Essential for powder characterization in pharmaceutical development.
Key Features:
- Automatic tapping mechanism
- Digital tap counter
- Adjustable tapping frequency
- Two graduated cylinders capacity
- Precise drop height control
- Digital display
- Programmable tap cycles
- USP and Ph. Eur. compliant
Technical Specifications:
| Tapping Frequency | 100-300 taps/min |
|---|---|
| Drop Height | 3 mm ± 0.2 mm |
| Cylinder Capacity | 100/250 ml |
| Counter Range | 0-9999 taps |
| Power Supply | AC 220V, 50Hz |
| Dimensions | 300 x 250 x 500 mm |

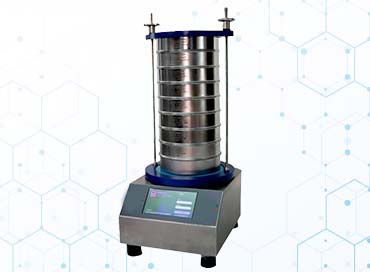

Electromagnetic Sieve Shaker RSS-1
The Electromagnetic Sieve Shaker RSS-1 from Raise Lab Equipment provides efficient particle size analysis through electromagnetic oscillation with heavy-duty base for stability.
Key Features:
- Supports 16 (100×25 mm) or 8 (200×50 mm) test sieves
- Tri-dimensional motion with programmable shake time
- Adjustable vibration amplitude (0.5 mm – 3.0 mm)
- Settable test time and interval
- Low-noise operation with quick locking knobs
- cGMP (SS-316) construction
- Recipe storage up to 50 programs
- Stores 1500+ reports (exportable)
- Intermittent and continuous testing modes
- Multi-user access (Admin, Supervisor, User)
Technical Specifications:
| Sieve Diameter | 200 mm / 8 inch |
|---|---|
| Motion | Electromagnetic |
| Display | Digital |
| Timer | Programmable |
| Power Supply | 230V / 50Hz |

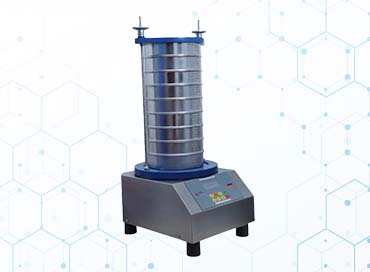

Electromagnetic Sieve Shaker RSS-1
The Electromagnetic Sieve Shaker RSS-1 from Raise Lab Equipment provides efficient particle size analysis through electromagnetic oscillation with heavy-duty base for stability.
Key Features:
- Complies with pharmacopeia standards
- Heavy base platform for vibration stability
- Adjustable power level (05–30) with intermittent function
- Supports lid and receiver
- Low noise and contamination-free operation
- Supports up to 16 (100×25 mm) or 8 (200×50 mm) sieves
- Three-dimensional sieve shaking motion
- Intermittent & continuous testing modes
- Service-free operation
Technical Specifications:
| Display | 20×4 LED Display |
|---|---|
| Method of Operation | 8-key membrane keypad |
| Rest Time | 0–99 minutes |
| Interval | 0.5 sec |
| Power Supply | 230V / 50Hz |

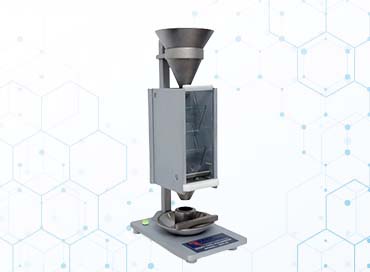

Scott Volumeter RSV-1
The Scott Volumeter RSV-1 from Raise Lab Equipment is a standardized instrument for measuring the apparent or bulk density of powders following the Scott method.
Key Features:
- Complies with USP & ASTM standards
- Toughened surface-treated glass baffles
- Vibration-free base platform
- In-built spirit level for leveling
- Interchangeable sieve mesh
- Standard 10 sieves included
- Optional custom sieves available
- Sample contact parts made of SS-316 & toughened glass
- Receiver cup made of SS-316
- Standard volume: 25 ± 0.05 ml
- Easy to clean and maintenance-free
Technical Specifications:
| Cup Volume | 25 ± 0.05 ml |
|---|---|
| Material | SS-316 & Toughened Glass |
| Standard | USP & ASTM |
| Sieves | 10 Standard included |
| Base | Vibration-free |

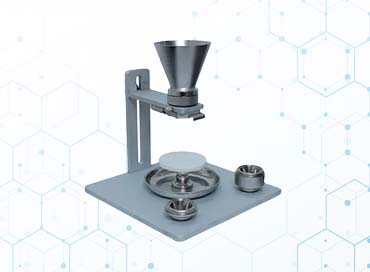

Powder Flow Tester RPF-1
The Powder Flow Tester RPF-1 from Raise Lab Equipment is designed to measure angle of repose and flow rate of powders. Critical for formulation development and manufacturing optimization.
Key Features:
- Complies with USP & ASTM standards
- Easy calculation of angle of repose using digital height gauge
- Outflow openings: 10 mm, 15 mm & 25 mm
- Optional 5 mm outflow opening available
- Interchangeable discs with holes of various diameters
- Provides simple, repeatable flowability index of powder samples
- Enables flowability testing before tablet or capsule filling setup
- Helps maintain uniformity and reduce variation
- Material of construction: SS-304 & SS-316
- Digital height gauge available as optional accessory
Technical Specifications:
| Outflow Openings | 10 mm, 15 mm, 25 mm |
|---|---|
| Optional Opening | 5 mm |
| Material | SS-304 & SS-316 |
| Standard | USP & ASTM |
| Optional Accessory | Digital height gauge |
