Tablet Disintegration Testers — Automated & Manual Models
Testing equipment for measuring tablet and suppository disintegration time

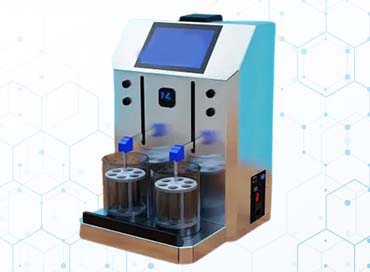

Automatic Tablet Disintegration Tester ADT-2B
The Automatic Tablet Disintegration Tester ADT-2B is a two-station instrument designed for testing the disintegration time of tablets, capsules, and other solid dosage forms. It features automatic lift mechanisms, precise water bath temperature control, and individual station timing.
Key Features:
- Two independent testing stations
- Automatic lift mechanism for baskets
- Precise PID temperature control
- Digital display for time and temperature
- Programmable test protocols
- High-quality stainless steel water bath
- USP/EP/IP Compliant
- Easy to disassemble and clean
Technical Specifications:
| Number of Stations | 2 |
|---|---|
| Temperature Range | 20-45°C |
| Temperature Accuracy | ±0.5°C |
| Stroke Frequency | 30-32 cycles/min |
| Stroke Height | 55 ± 2 mm |
| Power Supply | 220V AC, 50Hz |

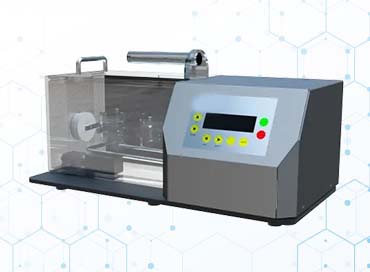

Suppository Disintegration Tester RSDT-3B
The Suppository Disintegration Tester RSDT-3B from Raise Lab Equipment is specifically designed for testing the disintegration and melting characteristics of suppositories in accordance with international standards.
Key Features:
- Three testing positions
- Specialized suppository holders
- Precise temperature control
- Digital timer with alarm
- Clear viewing window
- Stainless steel water bath
- Easy cleaning and maintenance
- Pharmacopoeia compliant
Technical Specifications:
| Number of Stations | 3 |
|---|---|
| Temperature Range | 35-39°C |
| Timer | Digital |
| Compliance | Pharmacopoeia compliant |
| Power Supply | 230V / 50Hz |
4-Station Disintegration Tester DT-4DD
The 4-Station Disintegration Tester DT-4DD from Raise Lab Equipment offers four independent testing stations with precise temperature control. This versatile instrument tests tablet disintegration time according to pharmacopoeia standards.
Key Features:
- Four independent testing stations
- Digital temperature control and display
- Automatic basket oscillation
- Adjustable stroke length
- Built-in water bath
- Stainless steel construction
- Individual timing for each station
- USP/EP/IP Compliant
Technical Specifications:
| Stations | 4 |
|---|---|
| Temperature Range | 35-42°C |
| Stroke Length | 55 mm |
| Compliance | USP / IP |
| Power Supply | 230V / 50Hz |

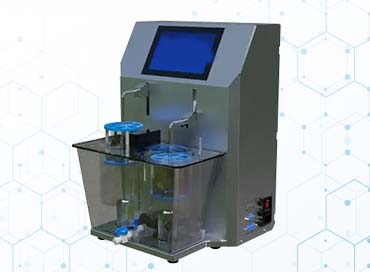

2-Station Disintegration Tester DT-2D
The 2-Station Disintegration Tester DT-2D from Raise Lab Equipment is a compact and efficient instrument designed for routine disintegration testing. With two testing stations and user-friendly controls, it provides accurate results while maintaining a small laboratory footprint.
Key Features:
- Two testing stations
- Compact design saves space
- Digital temperature controller
- Automatic stroke mechanism
- Easy-to-read LCD display
- Durable stainless steel basket
- Quick setup and operation
- Energy-efficient heating system
Technical Specifications:
| Stations | 2 |
|---|---|
| Temperature Range | 35-40°C |
| Stroke Rate | 30 cycles/min |
| Display | Digital |
| Power Supply | 230V / 50Hz |
