Vacuum Leak Test Apparatus — Package Integrity Testing Equipment
Equipment for testing package seals and container integrity using bubble emission method

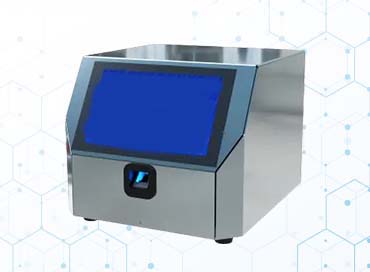

Leak Test Apparatus RLT-2B
The Leak Test Apparatus RLT-2B is a professional solution for testing the integrity of pharmaceutical packaging, including blister packs, strips, and bottles. It uses the vacuum-induced bubble emission method to detect even the smallest leaks, ensuring product sterility and shelf life.
Key Features:
- Microprocessor-based digital control
- Highly transparent acrylic vacuum chamber
- Programmable vacuum level and hold time
- Automatic vacuum release after test
- Digital display of vacuum and time
- Easy to operate and maintain
- Meets USP standards for leak testing
- Robust construction for daily use
Technical Specifications:
| Vacuum Range | 0 to -600 mmHg |
|---|---|
| Timer | Programmable |
| Display | Digital |
| Chamber | Transparent Acrylic |
| Power Supply | 230V / 50Hz |

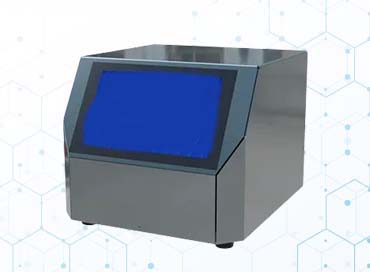

Leak Test Apparatus RLT-2
The Leak Test Apparatus RLT-2 from Raise Lab Equipment offers an economical, fully calibrated solution for ensuring the integrity of various packaging using bubble emission method.
Key Features:
- Simple and easy to operate
- User-friendly menu
- 7-inch touch screen display
- Embedded microcontroller-based high-precision vacuum sensor
- Programmable vacuum up to 600 mmHg
- Programmable vacuum holding time up to 99 min 59 sec
- Automatic vacuum control via oil-free vacuum pump
- Built-in thermal printer for instant test reports
- Validation using certified digital vacuum gauge
- cGMP compliant (SS-304)
- Polycarbonate vacuum desiccators (300 mm standard, 200 mm optional)
- Storage for 40 products and 1500 reports
- Three-level password security with up to 50 users
- USP and international packaging compliance
Technical Specifications:
| Display | 7-inch smart display |
|---|---|
| Vacuum Range | 30 mmHg to 600 mmHg |
| Test Time | Up to 99 min 59 sec |
| Vacuum Desiccator | 300 mm polycarbonate |
| Printer | In-built thermal printer / LX310 dot matrix |
| Power Supply | 230V / 50Hz |
