Pharmaceutical Dissolution Testers — USP <711> Compliant
Advanced apparatus for pharmaceutical dissolution testing with multi-station capability

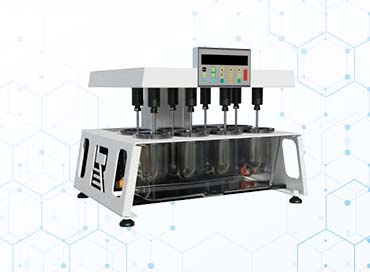

Tablet Dissolution Tester RLTDT-08LM
The Tablet Dissolution Tester RLTDT-08LM is a high-performance 8-vessel system for pharmaceutical dissolution testing. It features high-accuracy rotation speed control, uniform temperature distribution, and a user-friendly interface for setting up and monitoring tests.
Key Features:
- 8-vessel testing configuration
- USP Type I and Type II compliant
- High-precision motor for speed control
- Uniform heating via circulation pump
- Digital LCD display for all parameters
- Sturdy corrosion-resistant frame
- Easy sampling and vessel handling
- Password protection for test protocols
Technical Specifications:
| Vessels | 8 |
|---|---|
| Speed Range | 25-200 RPM |
| Speed Accuracy | ±1 RPM |
| Temperature Range | Ambient to 45°C |
| Temperature Stability | ±0.1°C |
| Power Supply | 220V AC, 50Hz |

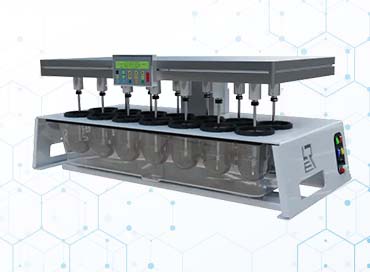

Tablet Dissolution Tester RLTDT-14LM
The Tablet Dissolution Tester RLTDT-14LM is an advanced, high-capacity system designed for high-throughput dissolution testing. With 14 vessels, it allows for simultaneous testing of multiple batches or comparative studies, significantly increasing laboratory productivity while maintaining exceptional precision.
Key Features:
- 14-vessel high-throughput design
- Advanced microprocessor control
- Individual vessel temperature monitoring
- Automated sampling manifold option
- Large touchscreen interface
- USP/EP/IP Compliant
- Secure data logging and user management
- Robust water bath with circulation
Technical Specifications:
| Vessels | 14 |
|---|---|
| Speed Accuracy | ±0.5 RPM |
| Temperature Accuracy | ±0.1°C |
| Bath Material | Anti-corrosive Acrylic |
| Interface | 7-inch Touchscreen |
| Data Port | Ethernet/USB |

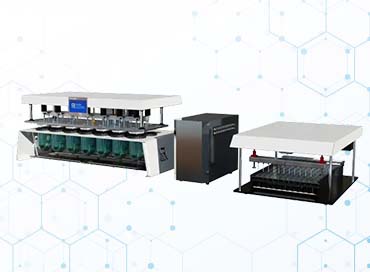

Tablet Dissolution Tester RLTDT-14SA
The Tablet Dissolution Tester RLTDT-14SA is a semi-automatic version of our 14-vessel system, featuring integrated sampling automation to reduce manual error and improve consistency. Ideal for busy QC labs needing reliable, automated data collection and precise test execution.
Key Features:
- Semi-automatic sampling system
- Integrated syringe pump compatibility
- 14-vessel capacity for large scale testing
- Pre-programmed USP/BP test protocols
- Automated tablet drop feature
- Validation protocols built-in
- 21 CFR Part 11 compliant software
- Modular design for easy service
Technical Specifications:
| Automation | Semi-Automatic |
|---|---|
| Vessels | 14 |
| Sampling Accuracy | ±1% |
| Test Storage | Up to 100 protocols |
| Control | Microprocessor based |
| Weight | 45 kg |

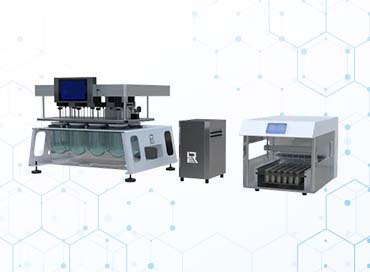

Dissolution Tester RLTDT-08SA
The Dissolution Tester RLTDT-08SA from Raise Lab Equipment combines precision testing with semi-automated sampling capabilities for improved efficiency.
Key Features:
- Semi-automated sampling system
- Programmable sampling intervals
- Automated filtration
- Touchscreen control interface
- Real-time monitoring
- Data export capabilities
- Multiple apparatus types support
- 21 CFR Part 11 ready software
Technical Specifications:
| Number of Vessels | 8 |
|---|---|
| Sampling | Semi-automated |
| Temperature Control | PID controlled |
| Sampling Points | 1-99 programmable |
| Display | 12-inch touchscreen |
| Communication | USB, Ethernet |
